GU,GUT – Overflow Valve
Specifications
• Design - ANSI-ISA-75.08.01 / DIN-ISO• Nominal Pressure - Class 150 / 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049 / ASTM A395
• Face-to-Face - ANSI/ISA-75.08.01 / DIN EN 558-1 and ISO 5752 series 1
• Flanges to ASME B16.5, raised face or ISO 7005-2, type B
• Temperature Range - -60 °C to +180 °C (-75 °F to +360 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)

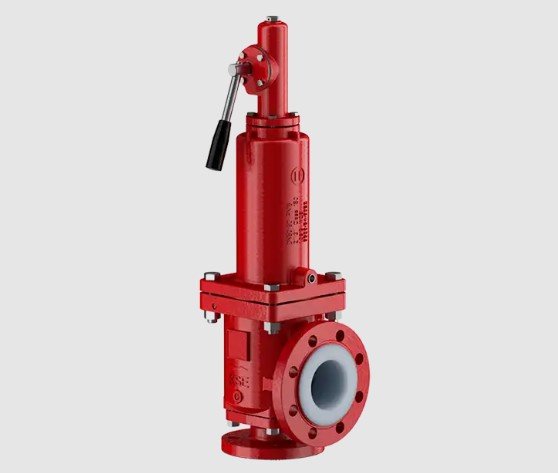

KSE 3.0 – Safety Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - Cast steel 1.0619+N (GP240GH)
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
vTemperature Range - -60 °C to +180 °C (-75 °F to +360 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU; certified for vapours/gases and liquids; Leakage measurement following DIN EN ISO 15848-1:2017; German Clean Air Act (TA-Luft), new version 2021; ADI-free
LPV – Low-Pressure Safety Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 16 bar
• Lining - PFA/PTFE
• Housing Material - EN-JS 1049
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL
