BVA – Standard Duty Ball Valves (ASME)
Specifications
• Design - ASME• Nominal Pressure - Class 150
• Lining - PFA
• Housing Material - EN-JS 1049
• Face-to-Face - ASME B16.10, Class 150 column 19
• Flanges to ASME B16.5, class 150, raised face
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL

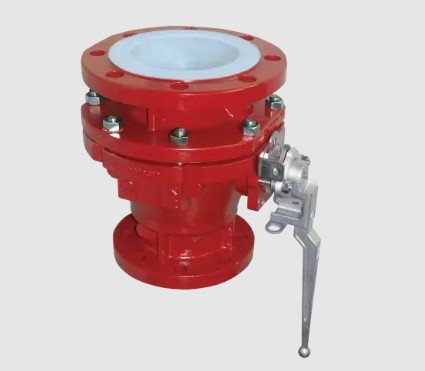

KA-N – Bottom Drain Ball Valves
Specifications
• Design - DIN/ISO ANSI/ISA-75.08.01• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049 / ASTM A395
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), DIN EN ISO 15848-1
KK – Compact Ball Valve (ISO/DIN)
Specifications
• Design - DIN/ISO ANSI/ISA-75.08.01• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049 / ASTM A395
• Face-to-Face - DN + 50 mm
• Flangeless
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)

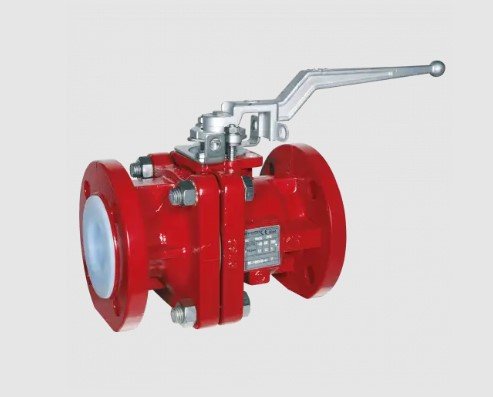

KN/KNA – Heavy Duty Ball Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), DIN EN ISO 15848-1, SIL

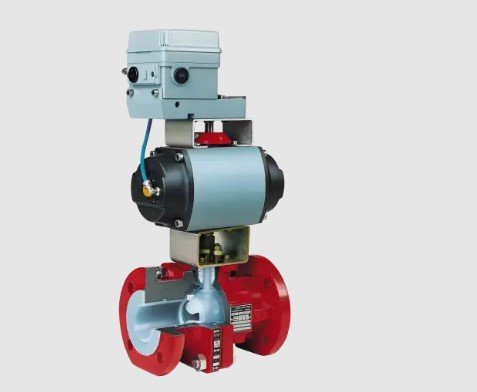

KNR – Heavy Duty Control Ball Valve
Specifications
• Design - ISO/DIN ASME• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), DIN EN ISO 15848-1, SIL
TE – Tank Bottom Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 10 bar
• Lining - PFA
• Housing Material - EN-JS 1049
• Face-to-Face - 177 mm
• Flanges - DIN EN 1092-2, type B (ISO 7005-2 type B) PN 10 or flange drilled to ASME B16.5 Class 150
• Temperature Range - -40 °C to +180 °C (-40 °F to +360 °F)
• Certifications - DIN EN 14432, PED 2014/68/EU, German Clean Air Act (TA-Luft)
