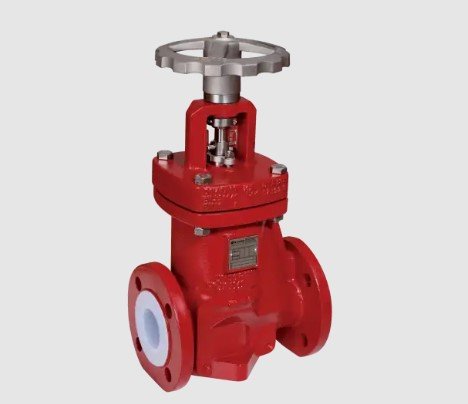

HV – Bellows-Sealed Valves
Specifications
• Design - DIN/ISO ANSI/ISA-75.08.01• Nominal Pressure - 16 bar, Class 150
• Lining - PFA
• Housing Material - EN-JS 1049 / ASTM A395
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1, ANSI 75.08.01 Cl 150+300
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +180 °C (-75 °F to +360 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
RSS – Bellows-Sealed Control Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +180 °C (-75 °F to +356 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), SIL
