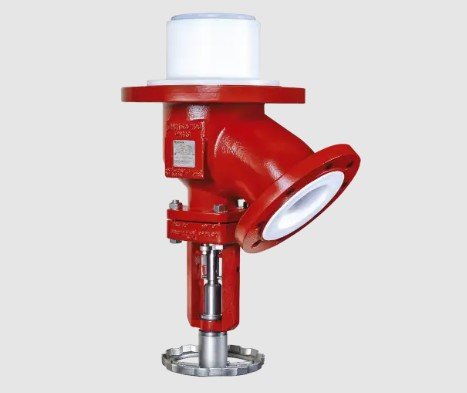

BAV – Bottom Drain Stem Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 10 bar
• Lining - PTFE
• Housing Material - EN-JS 1049
• Face-to-Face - Similar to DIN 28140-1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +180 °C (-75 °F to +360 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
MV – DIAPHRAGM VALVES
Specifications
• Design - ISO/DIN• Nominal Pressure - 16 bar / 10 bar / 7 bar
• Lining - PFA
• Housing Material - EN-JS 1049
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -30 °C to +150 °C (-22 °F to +300 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft), DIN EN ISO 15848-1, SIL

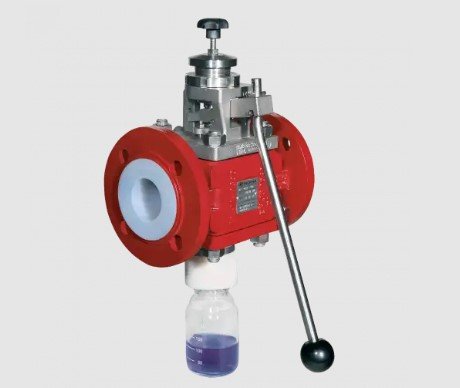

PA – Sampling Valve
Specifications
• Design - ISO/DIN• Nominal Pressure - 16 bar
• Lining - PFA
• Housing Material - EN-JS 1049 / 1.4435
• Face-to-Face - DIN EN 558-1 and ISO 5752 series 1
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +200 °C (-75 °F to +400 °F)
• Certifications - EU Pressure Equipment Directive 2014/68/EU, German Clean Air Act (TA-Luft)
