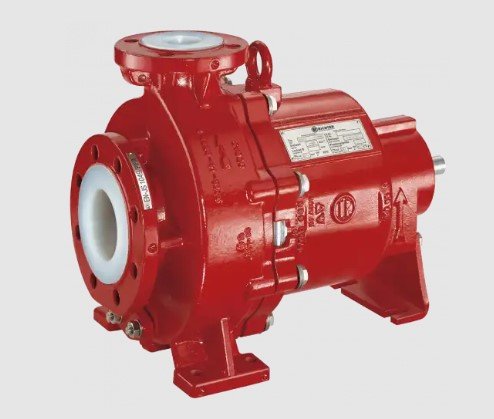

MNK – Heavy Duty
Specifications
• Design - Long life grease or oil bath lubrication• Nominal Pressure - PN16
• Lining - PFA, PTFE, PFA conductive
• Housing Material - EN-JS 1049 / ASTM A 395
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +200 °C (-80 °F to +400 °F)
• Certifications - 2006/42/EC Machinery Directive, 2014/34/EU Equipment explosive atmosphere

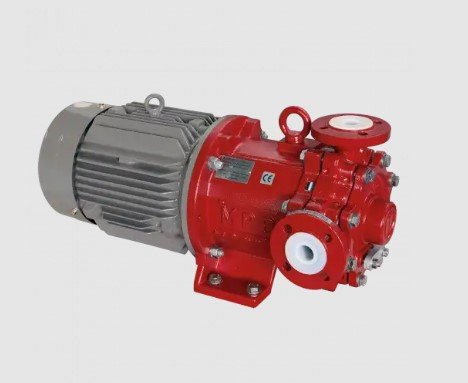

MPB – Peripheral Magnetic Drive Pumps
Specifications
• Design - Close-coupled design• Nominal Pressure - PN16
• Lining - PFA
• Housing Material - EN-JS 1049 / ASTM A 395
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +150 °C (-80 °F to +300 °F)
• Certifications - 2006/42/EC Machinery Directive, 2014/34/EU Equipment explosive atmosphere

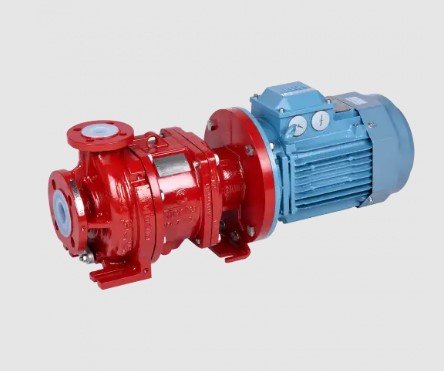

QMD – Standard Duty
Specifications
• Design - Close-coupled and frame-mounted• Nominal Pressure - PN16
• Lining - FEP
• Housing Material - EN-JS 1049 / ASTM A 395
• Flange connection - Standard design as per alternatively ASME B16.5 Cl. 150
• Temperature Range - -10 °C to +100 °C (14 °F to +210 °F)

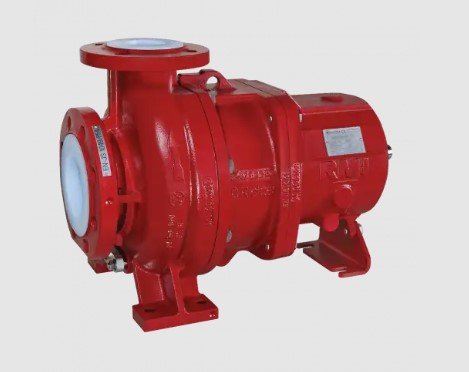

RM – Medium Duty
Specifications
• Design - Long-life grease or oil bath lubrication• Nominal Pressure - PN16
• Lining - PFA
• Housing Material - EN-JS 1049 / ASTM A 395
• Flanges to ISO 7005-2, type B
• Temperature Range - -30 °C to +150 °C (-20 °F to +300 °F)
• Certifications - 2006/42/EC Machinery Directive, 2014/34/EU Equipment explosive atmosphere

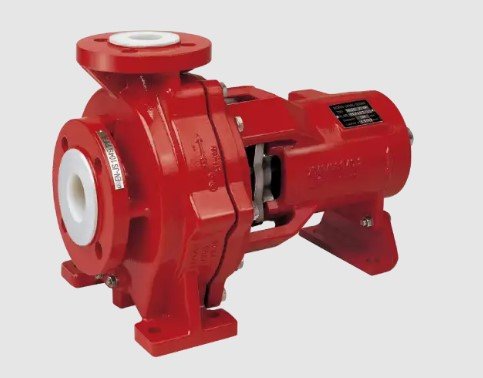

SCK – Mechanically Sealed Pumps
Specifications
• Design - Long life grease or oil bath lubrication• Nominal Pressure - PN16
• Lining - PFA, PTFE, PFA conductive
• Housing Material - EN-JS 1049 / ASTM A 395
• Flanges to ISO 7005-2, type B or flanges drilled to ASME B16.5 class 150, raised face
• Temperature Range - -60 °C to +180 °C (-80 °F to +360 °F)
• Certifications - 2006/42/EC Machinery Directive, 2014/34/EU Equipment explosive atmosphere
