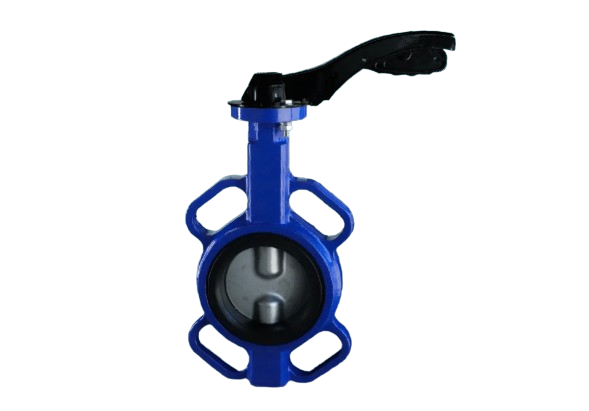

Butterfly Valve
BU25 Series
• Body Type: Wafer, Lug• Body Materials: Cast Iron GJL-250, Ductile Iron GGG40, Carbon Steel 1.0619, Stainless Steel 1.4308, Stainless Steel 1.4408
• Liner: EPDM, NBR (Buna N), PTFE, Viton, Natural Rubber, Silicone
• Working Pressure: PN10, PN16, ANSI 150, JIS 10K, JIS 16K
• Face to Face: API609, EN558-120 Series, ISO5752, DIN3202K1
• Top Flange: ISO 5211
• Flange Drilling: BS EN1092, JIS B2220, ASME Class 125 / Class 150
• Disc and Stem Connection Type: Two Pieces Shaft Design (2″ to 12″), Spline Design (14″ & Above)
• Stem Topz: Square Top Flange
Butterfly Valve
BU26 Series
• Body Type: Wafer, Lug• Body Materials: Ductile Iron GGG40, Carbon Steel 1.0619, Stainless Steel 1.4408
• Liner: PFA / PTFE / RTFE / TFM
• Working Pressure: PN10, PN16, ANSI 150, JIS 10K, JIS 16K
• Face to Face: API609, EN558-120 Series, ISO5752, DIN3202K1
• Top Flange: ISO 5211
• Flange Drilling: BS EN1092, JIS B2220, ASME Class 125 / Class 150
• Stem Topz: Square Top Flange

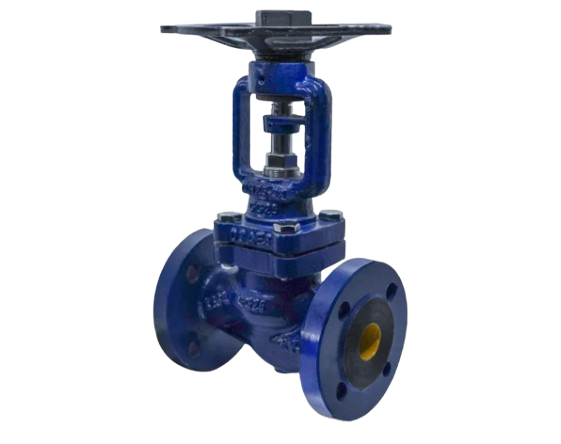

Bellow Seal Globe Valve
GL25 Series
• Body Type: Straight Type• Body Materials: Cast Iron, Forged Steel / A105, Ductile Iron, St. St. 304, Cast Carbon Steel, St.St 316 / 1.4571.
• Plug: St. Steel 1.4021 + Hard Faced 13% Cr
• Plug Design: Parabolic (For regulating), Conical (For On Off), Balancing (For 5” and above, high pressure).
• Seat / Bellow Material: 321 Ti, St.St 304, St.St 316 / 1.4571, Hastelloy C.
• Connection: BSPT – Tappered NPT, Socket Weld, Flanged End, Butt Weld.
• Size: DN15 (½”) to DN150 (6”).
• Flow Capacity For Standard Plug: KVS = 4.8 – 1691
• Flow Capacity For Throttling Plug: KVS = 4.36 – 1410
• Pressure Rating: ANSI 150, ANSI 300, ANSI 600, ANSI 900, PN 16, PN 25, PN 40.

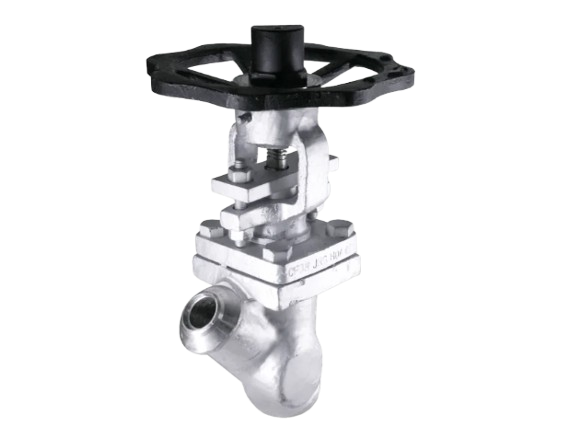

Bellow Seal Globe Valve
GL26 Series
• Body Type: Y Type• Body Materials: Cast Iron, Forged Steel / A105, Ductile Iron, St. St. 304, Cast Carbon Steel, St.St 316 / 1.4571.
• Plug: St. Steel 1.4021 + Hard Faced 13% Cr
• Plug Design: Parabolic (For regulating), Conical (For On Off), Balancing (For 5” and above, high pressure).
• Seat / Bellow Material: 321 Ti, St.St 304, St.St 316 / 1.4571, Hastelloy C.
• Connection: BSPT – Tappered, NPT, Socket Weld, Flanged End, Butt Weld.
• Size: DN15 (½”) to DN150 (6”).
• Flow Capacity For Standard Plug: KVS = 4.8 – 1691
• Flow Capacity For Throttling Plug: KVS = 4.36 – 1410
• Pressure Rating: ANSI 150, ANSI 300, ANSI 600, ANSI 900, PN 16, PN 25, PN 40.

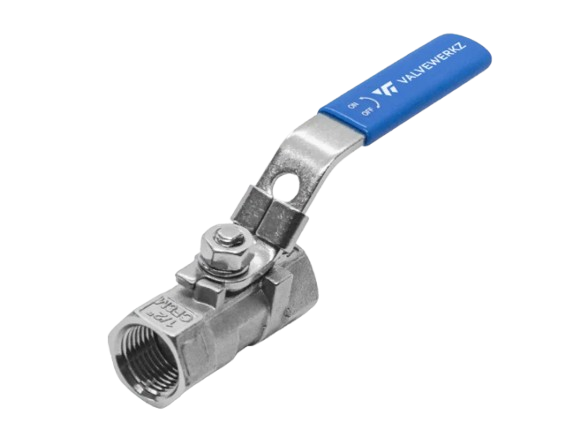

Ball Valve
10 Series
• Design: 1-Piece Body, Reduced Bore• Body Material: SS316
• Ball Material: SS316
• Seat Material: PTFE
• Connection: Threaded End
• Size: DN8 (¼”) to DN50 (2”)
• Flow Capacity: Cv = 6 to Cv = 165
• Pressure Rating: 800 WOG.

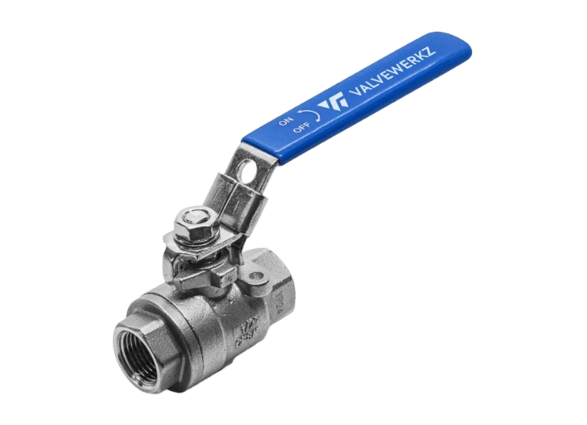

Ball Valve
20 Series
• Design: 2-Piece Body, Full Bore• Body Material: SS316
• Ball Material: SS316
• Seat Material: PTFE
• Connection: Threaded End
• Size: DN8 (¼”) to DN80 (3”)
• Flow Capacity: Cv = 7 to Cv = 1250
• Pressure Rating: 1000 WOG.

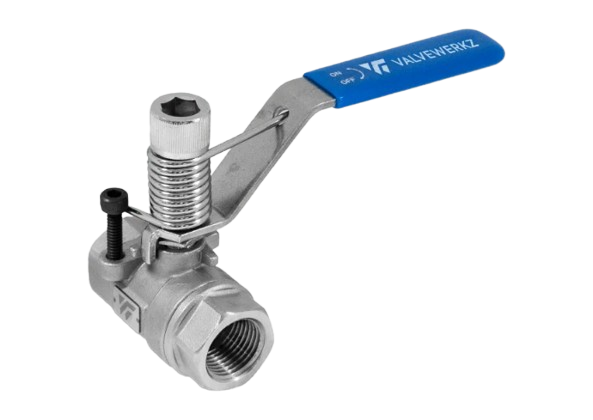

Ball Valve
205S Series
• Design: 2-Piece Body, Reduce Bore• Body Material: SS316
• Ball Material: SS316
• Seat Material: PTFE
• Connection: Threaded End
• Size: DN8 (¼”) to DN50 (2”)
• Flow Capacity: Cv = 6 to Cv = 165
• Pressure Rating: 2000 WOG.
Ball Valve
50 Series
• Design: 2-Piece Body, Full Bore• Body Material: Carbon Steel, SS316
• Ball Material: SS316
• Standard Seat: RPTFE (max. 180°C)
• Seat Options: 25% Carbon filled PTFE (max. 220°C), 50% SS filled PTFE (max. 240°C)
• Connection: Threaded End, Socket Weld End, Butt Weld End
• Size: DN8 (¼”) to DN100 (4”)
• Flow Capacity: Cv = 7 to Cv = 2000
• Pressure Rating: 1000 WOG.

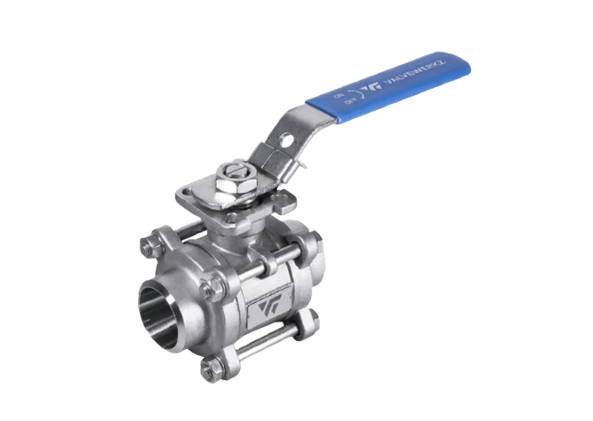

Ball Valve
90 Series
• Design: 3-Piece Body, Full Bore• Body Material: Carbon Steel, SS316
• Ball Material: SS316
• Seat Material: RPTFE, 25% Carbon filed PTFE, 50% SS filled PTFE
• Connection: Threaded End, Socket Weld End, Butt Weld End
• Size: DN8 (¼”) to DN50 (2”)
• Automation Option & Accessories Pneumatic Actuator, (Single Acting / Double Acting), Electric Actuator
• Flow Capacity: Cv = 7 to Cv = 2000
• Pressure Rating: PN64 ¼˝ – 2˝, PN50 2 ½˝ – 4˝

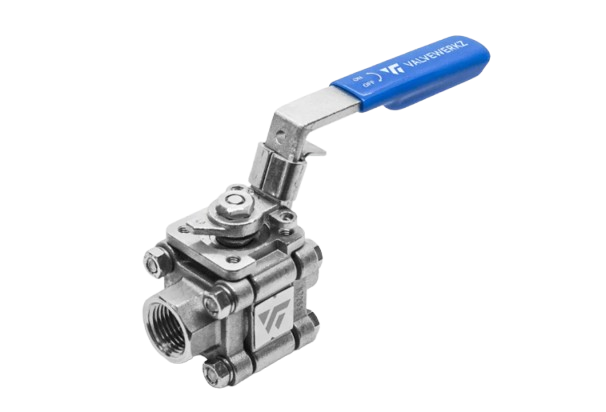

Ball Valve
80 Series
• Design: 3-Piece Body, Full Bore / Reduced Bore• Body Material: Carbon Steel, SS316
• Ball Material: SS316
• Seat Material: PEEK, 25% Carbon filed PTFE, 50% SS filled PTFE
• Connection: Threaded End (¼” – 4”), Socket Weld End (¼” – 4”), Butt Weld End (¼” – 10”)
• Size: DN8 (¼”) to DN100 (4”)
• Automation Option & Accessories Pneumatic Actuator, (Single Acting / Double Acting), Electric Actuatorr
• Flow Capacity: Cv = 7 to Cv = 2000
• Pressure Rating: PN100 ¼” – 1”, PN64 1 ¼” – 2”, PN50 2 ½” – 4”, PN16 5” – 10.

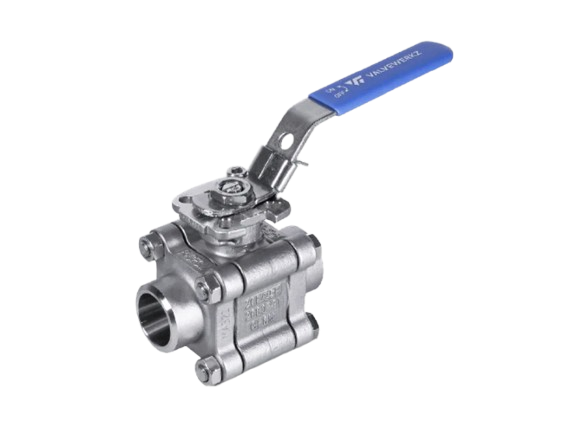

Ball Valve
81FS Series
• Design: 3-Piece Body, Full Bore / Reduced Bore• Body Material: Carbon Steel, SS304, SS316
• Ball Material: SS316
• Seat Material: CPTFE, TFM4215, TFM4215 + 50%SS, PEEK
• Connection: Threaded End (¼” – 4”), Socket Weld End (¼” – 4”), Butt Weld End (¼” – 10”)
• Size: Full Bore DN8 (¼˝) to DN100 (4˝), Reduced Bore DN15 (½”) to DN100 (4˝)
• Automation Option & Accessories Pneumatic Actuator, (Single Acting / Double Acting), Electric Actuatorr
• Flow Capacity: Cv = 9.2 to Cv = 1020
• Pressure Rating:
Full Bore: 2000psi ¼” – 1”, 1500psi 1 ¼” – 2”, 1000psi 2 ½” – 4”
Reduced Bore: 2000psi ½” – 1”, 1500psi 1 ¼” – 2”, 1000psi 2 ½” – 4”

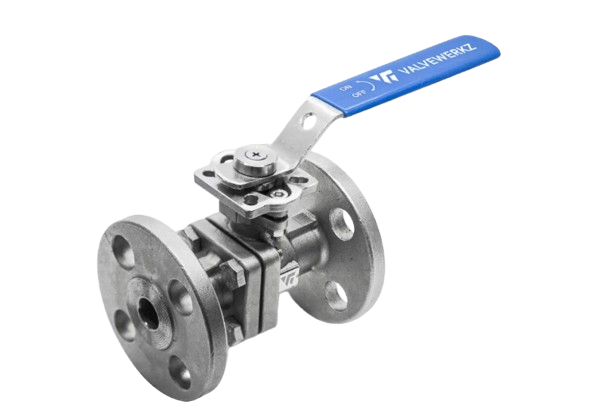

Ball Valve
203 Series
• Design: 3-Piece Body, Full Bore• Body Material: Carbon Steel, SS304, SS316
• Ball Material: SS316
• Seat Material: RPTFE, 25% Carbon filed PTFE, 50% SS filled PTFE, PEEK
• Connection: ANSI (ANSI 150 / ANSI 300), DIN (PN16 / PN40), JIS (JIS-10K / JIS-20K)
• Size: DN15 (½˝) to DN150 (6˝)
• Automation Option & Accessories Pneumatic Actuator, (Single Acting / Double Acting), Electric Actuatorr
• Flow Capacity: Cv = 15 to Cv = 5150
• Pressure Rating:
ANSI (ANSI 150 / ANSI 300), DIN (PN16 / PN40), JIS (JIS-10K / JIS-20K).
Steam Traps
ST60 Series
• Design: Ball Float• Body Material: Carbon Steel, SS304
• Internal Parts: Stainless Steel
• Connection: Threaded End, Socket Weld End, Flanged End
• Size: DN15 (½˝) to DN25 (2 ½˝)
• Flow Capacity: Max Discharge = 150 t/hr
• Pressure Rating:
PN25 – PN40, Max W.P = 16 – 32 Bar.
Steam Traps
ST61 Series
• Design: Thermodynamic• Body Material: Carbon Steel, SS304
• Internal Parts: Stainless Steel
• Connection: Threaded End, Socket Weld End, Flanged End
• Size: DN15 (½”) to DN25 (1”)
• Flow Capacity: Max Discharge = 700 kg/hr
• Pressure Rating:
PN25 – PN63, Max W.P = 16 Bar.
Steam Traps
ST62 Series
• Design: Bimetallic• Body Material: Carbon Steel, SS304
• Internal Parts: Stainless Steel
• Connection: Threaded End, Socket Weld End, Flanged End
• Size: DN15 (½”) to DN25 (1”)
• Flow Capacity: Max Discharge = 800 kg/hr
• Pressure Rating:
PN25 – PN40, Max W.P = 16 – 32 Bar.

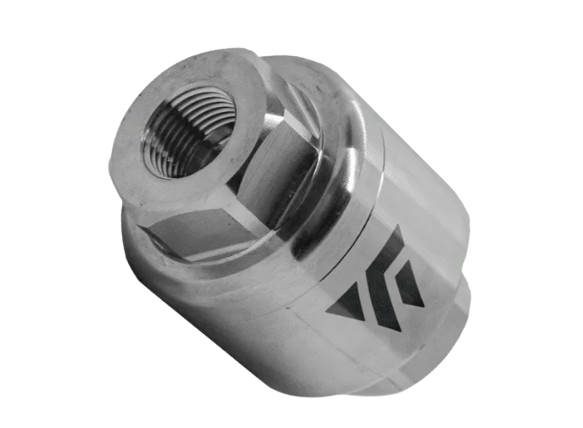

Steam Traps
ST63 Series
• Design: Thermostatic Capsule• Body Material: Carbon Steel, SS304
• Internal Parts: SS304
• Connection: Threaded End, Flanged End
• Size: DN15 (½”) to DN25 (1”)
• Flow Capacity: Max Discharge = 300 kg/hr
• Pressure Rating:
PN25, Max W.P = 16 Bar.
